Revolutionary Live Cell Metabolic Analyzer: LiCellMo
LiCellMo is available for purchase in the U.S., Canada, and select other geographies globally. For research and education use only, not for use in diagnostic procedures in the U.S. or Canada. This product has not been approved or cleared as a medical device by the U.S. Food and Drug Administration or Health Canada.
Continuous, sample-free measurement of glucose and lactate in cell culture
Visualize real-time changes in cell metabolism without sampling
Cells are constantly growing and differentiating, and these processes are closely linked to metabolism. In cancer immunology, stem cell research, and the development of manufacturing processes for cell-based formulations, understanding the metabolic state of cells is increasingly important for analyzing cell activation and disease.
LiCellMo offers uninterrupted, real-time insights into glucose and lactate metabolism, providing minute-by-minute data on metabolic pathways. This ground-breaking technology continuously monitors metabolites in culture, eliminating traditional, labor-intensive methods, helping open new doors to unprecedented discoveries in cell metabolism. From cancer and immunology research to stem cell studies, LiCellMo's capabilities extend to various fields, including work with organoids and cancer and stem cell research.

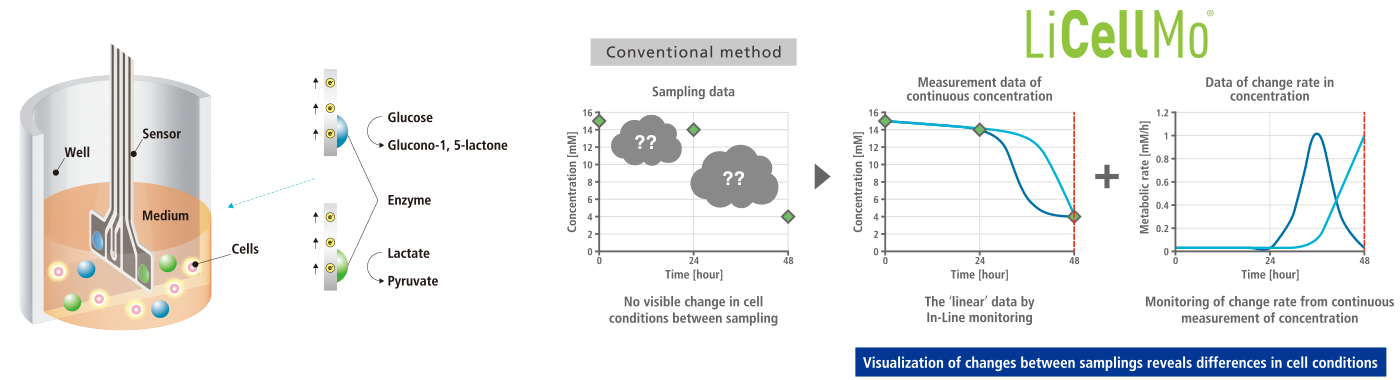

In-line sensors: the key to continuous measurements of glucose and lactate
The glycolytic pathway is one of the main components of cellular energy metabolism. During glycolysis, glucose is metabolized and lactate is produced. Conventional analysis of cell metabolism typically involves estimating glucose and lactate concentrations from data points obtained from periodic sampling.
The high-precision in-line sensors of LiCellMo offer these unique advantages:
- Real-time monitoring of glucose and lactate concentrations
- Continuous measurements without sampling
- Preservation of cells for further evaluation after measurement
- Comprehensive, quantifiable data
Measure cells in their usual culture environment

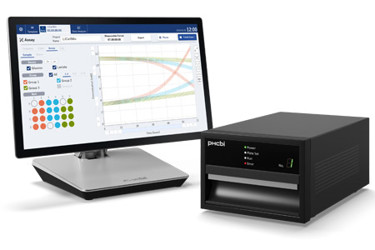

The simplicity of LiCellMo's design makes it suitable for any laboratory space and does not require specialized cell culturing equipment. Common commercial products (culture medium, 24-well plates, calibration liquid, additive reagents) can be used for cell culture. The sensor module and plate adaptor can be attached to standard 24-well plates. Once the plate is placed in the detector pre-installed in the CO2 incubator, real-time, sample-free measurements can be easily monitored using the touch-panel controller. Optional plate adapters are available for five different commercial 24-well plates.
Evaluate glycolytic changes directly

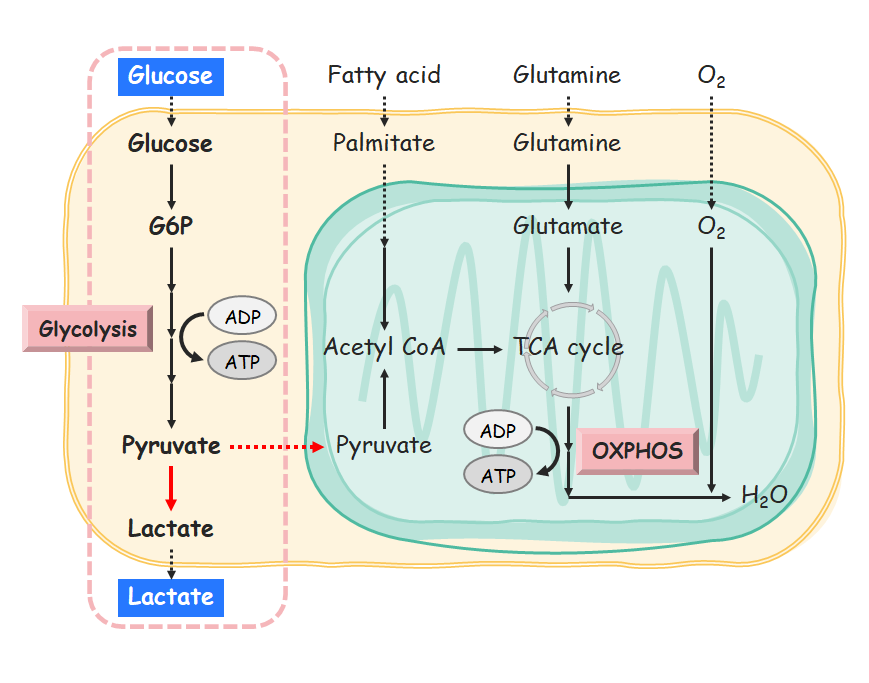

LiCellMo enables direct evaluation of changes in the glycolytic pathway by measuring glucose uptake and lactate production in the cell culture medium. It visualizes cell metabolism using consumption and production rates based on concentration values, providing valuable metabolic rate data. Monitoring the efficiency of conversion from glucose to lactate makes it possible to evaluate not only glycolysis but also the balance with other cellular metabolic processes, such as the TCA cycle and oxidative phosphorylation in mitochondria.
